UHF TV Transmitters

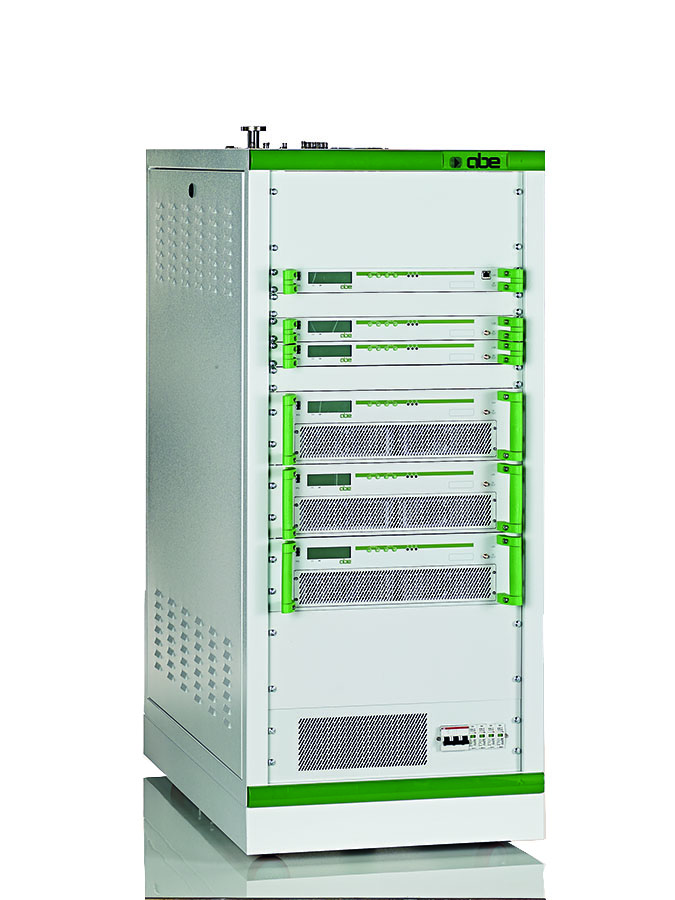

The MTX Series of High Power TV Transmitters is the ultimate in technology, quality and performance in the Broadcast industry; it is designed to take advantage of the excellence of the digital modulation systems to generate both Analog and Digital emissions (DVB-T2, DVB-T/H, ISDB-T/Tb, ATSC and other standards).

The MTX Series brings together the highly efficient and reliable ABE LD-MOS broadband Power Amplifiers with state-of-the-art technological solutions.

Key Features

• Multistandard analog transmitters with digital DDS modulator (PAL/SECAM/NTSC B, G, D, I, K, K1, M and N standards supported

• Multistandard digital transmitters (DVB-T2, DVB-T/H, ISDB-T/Tb and other standard)

• Embedded GNSS Receiver for SFN Networks

• Wide choice of input interfaces: ASI, Ethernet for T.S. over IP, DVB-S/S2 Multistream receiver, Digital Terrestrial Receiver, analog

• Video/Audio

• RF output: UHF, VHF Band I and Band III

• Frequency Agile Direct Digital Synthesizer with 1Hz resolution

• Adaptive precorrection option

• Hot Pluggable Power Supply Modules

• Hot Pluggable Power Amplifiers

• High efficiency Broadband Amplifiers

• High degree of operational reliability: single or dual drive, passive stand-by systems (1+1 or N+1)

• User Friendly local and remote control includes on-board display, Web GUI, SNMP and e-mail client

Main Benefits

• Open platform design to satisfy both today's and tomorrow's needs

• The ultimate in technology, quality, performance and reliability

• Low cost of ownership, low capital cost, running expenses & maintenance

• Complete range of options and configurations to satisfy any ne
